How to Transfer Data from Sparkplug B to Sparkplug B

Open Automation Software can be used to transfer data from Sparkplug B Edge of Network devices to another Sparkplug B Edge of Network (EoN) node locally or over a network. This guide walks you through downloading and installing OAS, configuring a Host App connector, a source EoN node with a simulation Tag and a destination EoN node.

Typically you will have your own Edge of Network (EoN) node configured. For the purposes of this guide, you will create a Sparkplug B hosting app and EoN nodes. You can also use your own EoN nodes if you already have them.

1 - Download and Install OAS

If you have not already done so, you will need to download and install the OAS platform.

Fully functional trial versions of the software are available for Windows, Windows IoT Core, Linux, Raspberry Pi and Docker on our downloads page.

On Windows, run the downloaded setup.exe file to install the Open Automation Software platform. For a default installation, Agree to the End User License Agreement and then click the Next button on each of the installation steps until it has completed.

If you'd like to customize your installation or learn more, use the following instructions:

• Windows Installation
• Linux Installation
• Raspberry Pi Installation
• Docker Installation

The OAS Service Control application will appear when the installation finishes on Windows.

Click on each START SERVICE button to start each of the three OAS services.

2 - Configure OAS

Configure OAS is the main application used to configure local and remote OAS instances.

1. From your operating system start menu, open the Configure OAS application.

2. Select the Configure > Tags screen.

   Important

   If this is the first time you have installed OAS, the AdminCreate utility will run when you select a screen in the Configure menu. This will ask you to create a username and password for the admin user. This user will have full permissions in the OAS platform.

   For further information see Getting Started - Security.

3. If this is the first time you are logging in, you will see the AdminCreate utility. Follow the prompts to set up your admin account. Otherwise, select the Log In menu button and provide the Network Node, username and password.





3 - Check that the MQTT Broker is enabled

If you are using the OAS MQTT Broker, you can follow the steps below to ensure it is enabled, otherwise you can skip this step.

1. Select Configure > Options from the top menu.



2. Select the MQTT Broker tab.

3. Check that the OAS MQTT Broker Enable checkbox is checked and the OAS MQTT Broker Port is configured as 1883.



4 - Create Security Group and User

When using Sparkplug B over the OAS MQTT Broker, you need to configure a security group and a user to provide Tag read/write access. You'll need these credentials when creating the Sparkplug B connector instances later.

ℹ️ You can skip this step if you already have your own MQTT Broker.

1. Select Configure > Security from the top menu.



2. Provide a Group Name such as SparkplugAccess.



3. Click on the DISABLE ALL button to disable all access.



4. In the Read Tags tab, ensure Disable All Tags From Reading is NOT checked.



5. In the Write Tags tab, ensure Disable Add Tags From Writing is NOT checked.



6. Click on the ADD GROUP button on the left hand side to add this security group configuration. Once added, the security group name should appear in the list of security groups.



7. Select Configure > Users from the top menu.



8. Provide a User Name such as sparkpluguser, a password and set the Security Group as SparkplugAccess.



9. Click on the ADD USER button on the left hand side to add this user configuration. Once added, the user name should appear in the list of users.



5 - Set up Sparkplug B Host App

In this section you will create a Sparkplug B driver configured using Host App mode. When you link EoN nodes to this host using the Host ID OAS will automatically create the Tags provided by the EoN node.

1. Select Configure > Drivers from the top menu.



2. Enter a name such as SpB Host App in the Driver Interface Name to give this driver interface a unique name.

3. Ensure the following parameters are configured:

   • Driver: Sparkplug B
   • Host: localhost
   • Port: 1883
   • User Name: sparkpluguser
   • Password: the password you configured in the previous step
   • Protocol Driver: V500
   • Client ID: OAS_Client_Host
   • Mode: Host App
   • Host ID: OAS_Host (you will need to use this in your EoN node configuration)



   ℹ️ If you are using your own MQTT Broker, ensure that you configure the Host, Port, User Name, Password and Protocol Driver accordingly.

4. Click on the ADD DRIVER button on the left hand side to add this driver configuration. Once added, the driver interface name should appear in the list of drivers.



6 - Create Source Sparkplug B EoN node

In order to simulate the Edge of Network (EoN) node acting as a data source, we can use the features available in OAS to create an EoN using a Sparkplug B connector instance and leverage the built-in MQTT broker.

ℹ️ You can skip this section if you want to use your own existing EoN node. You'll have to ensure that your EoN node is configured with the details in step 3 below so that it can talk to the OAS Host App.

1. Select Configure > Drivers from the top menu.



2. Enter a name such as EoN Source Node in the Driver Interface Name to give this driver interface a unique name.

3. Ensure the following parameters are configured:

   • Driver: Sparkplug B
   • Host: localhost
   • Port: 1883
   • User Name: sparkpluguser
   • Password: the password you configured in the previous step
   • Protocol Driver: V500
   • Client ID: OAS_Source_Node
   • Mode: Edge Node
   • Group ID: SourceGroup
   • Edge Node ID: SourceNode



4. Click on the ADD DRIVER button on the left hand side to add this driver configuration. Once added, the driver interface name should appear in the list of drivers.



7 - Create a Tag attached to EoN for data source simulation

Now that the EoN node has been created we want to be able to publish data from it so we can simulate data being generated by the EoN node.

ℹ️ If you skipped creating an EoN node in OAS and you already have your own EoN node configured, you can skip this section as well and instead generate some data in your own EoN node.

1. Select Configure > Tags from the top menu.



2. If you want to add a Tag to the root Tags group make sure the Tags node is selected in the tag list and click on the ADD TAG button.



   If you want to add a Tag to a Tag Group, select the Tag Group first and then click on the ADD TAG button.

   You can also add Tag Groups by using the ADD GROUP button.

3. Provide a Tag Name such as TemperatureSensor and click the OK button.



4. To assign this Tag to a Sparkplug B node configure the Host properties to match your EoN node Group ID and Edge Node ID properties.

   • Host Group ID: SourceGroup
   • Host Edge Node ID: SourceNode
   • Host Device ID: EoN Data Source
   • Host Metric Name: Temperature



5. Click on the Apply Changes button to apply the changes.

8 - Verify Host App Tag Generation for Data Source

You will now check to make sure the Tag Group folder structure and Tag for the Temperature metric was automatically generated and that any updates to the TemperatureSensor tag will flow through from the EoN node to the generated Tag.

1. Select Configure > Tags from the top menu.



   Tips

   If you were already on the Tags screen, you may need to click on the SELECT button next to the Network Node drop-down list to refresh the tag list.

2. You will see a Tag Group structure starting with a parent folder called SpB Host App and then a sub-folder for SourceGroup, another sub-folder for SourceNode and finally a sub-folder for the EoN node called EoN Data Source. The Temperature tag representing the Temperature metric is inside this final sub-folder.

   As you can see the Sparkplug B host app driver has automatically generated the folder structure and Tags.



3. Select the Temperature tag in the EoN Data Source sub-folder. You should see a value of zero (0) and the Client parameters configured according to the EoN node Host properties. These properties were automatically configured by OAS.



4. Now you will test the data flow.

   ℹ️ If you have your own EoN node configured and you skipped creating an EoN node in OAS then you can trigger a data change in your EoN node to test the configuration.

   If you created an EoN node in OAS you can select the TemperatureSensor tag in the root Tags folder. Type in a value of 24.9 in the Enter Value field and click on the Apply Changes button. If everything is working correctly, this change should trigger the EoN node to publish a new value via the OAS MQTT Broker.



5. Select the Temperature tag again in the EoN Sim sub-folder. You should now see a value of 24.9.



9 - Create Destination Sparkplug B EoN node

In order to simulate the Edge of Network (EoN) node acting as a data destination, we can use the features available in OAS to create an EoN using a Sparkplug B connector instance and leverage the built-in MQTT broker.

ℹ️ You can skip this section if you want to use your own existing EoN node. You'll have to ensure that your EoN node is configured with the details in step 3 below so that it can talk to the OAS Host App.

1. Select Configure > Drivers from the top menu.



2. Enter a name such as EoN Destination Node in the Driver Interface Name to give this driver interface a unique name.

3. Ensure the following parameters are configured:

   • Driver: Sparkplug B
   • Host: localhost
   • Port: 1883
   • User Name: sparkpluguser
   • Password: the password you configured in the previous step
   • Protocol Driver: V500
   • Client ID: OAS_Destination_Node
   • Mode: Edge Node
   • Group ID: DestinationGroup
   • Edge Node ID: DestinationNode



4. Click on the ADD DRIVER button on the left hand side to add this driver configuration. Once added, the driver interface name should appear in the list of drivers.



10 - Add Data Destination Tag

In this section you will create a Tag to represent a data point that you want to write to.

1. Select Configure > Tags from the top menu.



2. If you want to add a Tag to the root Tags group make sure the Tags node is selected in the tag list and click on the ADD TAG button.



   If you want to add a Tag to a Tag Group, select the Tag Group first and then click on the ADD TAG button.

   You can also add Tag Groups by using the ADD GROUP button.

3. Provide a Tag Name such as TemperatureOutput and click the OK button.



11 - Set Data Destination Tag Data Source

In this section you will configure the data destination Tag to source it's value from the Sparkplug B data source Temperature tag using the Tag data source type.

1. On the Tags configuration screen, select the data destination Tag.

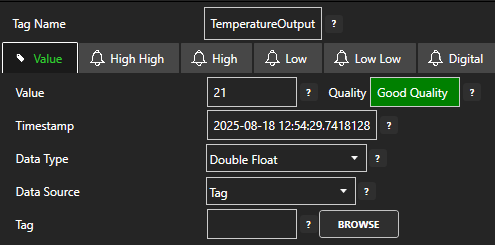

2. Set the Data Source property to Tag.

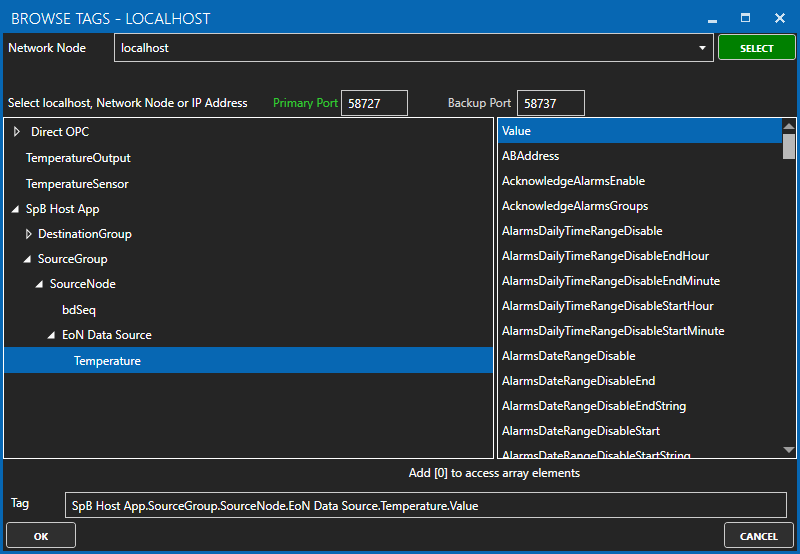

3. Next to the Tag property field click on the BROWSE button and select the Temperature tag in the SpB Host App tag group structure.



4. The Tag property should now contain the full tag path.



5. You should now see the tag value update to match the value of the TemperatureSensor tag.

6. Click on the Apply Changes button to apply the changes.

12 - Set Host Configuration on Tag

In this section you will configure the Sparkplug B Host parameters for the EoN node where the Tag value should be sent to.

1. On the Tags configuration screen, select the data destination Tag.



2. Configure the Host parameters according to your Sparkplug B destination EoN node.

   • Host Group ID: DestinationGroup
   • Host Edge Node ID: DestinationNode
   • Host Device ID: EoN Data Destination
   • Host Metric Name: Temperature



3. Click on the Apply Changes button to apply the changes.

13 - Verify Host App Tag Generation for Data Destination

You will now check to make sure the Tag Group folder structure and Tag for the Temperature metric was automatically generated and that any updates to the TemperatureSensor tag will flow through to the Sparkplug B tag structure.

1. On the Tags screen, click on the SELECT button to refresh the tag list.

2. You will see a Tag Group structure starting with a parent folder called SpB Host App and then a sub-folder for DestinationGroup, another sub-folder for DestinationNode and finally a sub-folder for the EoN node called Eon Data Destination. The Temperature tag representing the Temperature metric is inside this final sub-folder.

   As you can see the Sparkplug B host app driver has automatically generated the Tag Groups and Tags.



3. Select the Temperature tag in the EoN Data Destination sub-folder. You should see the value updating according to your data source and the Client parameters configured according to the EoN node Host properties. These properties were automatically configured by OAS.



You can now change the TemperatureSensor tag you created as a simulation and check that the data flows from the source EoN node to the destination EoN node.

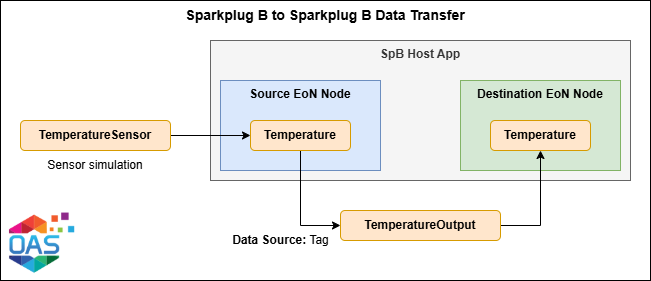

Your data should now be flowing from the TemperatureSensor simulation tag to the Sparkplug B source EoN node Temperature tag, and then to the TemperatureOutput tag, and finally to the Sparkplug B destination EoN node Temperature tag. You have now connected two Sparkplug B systems together using Data Route.

14 - Save Changes

Once you have successfully configured your OAS instances, make sure you save your configuration.

On each configuration page, click on the Save button.

If this is the first time you are saving the configuration, or if you are changing the name of the configuration file, OAS will ask you if you want to change the default configuration file.

If you select Yes then OAS will make this configuration file the default and if the OAS service is restarted then this file will be loaded on start-up.

If you select No then OAS will still save your configuration file, but it will not be the default file that is loaded on start-up.
