Automatic Activation

To active OAS using automatic activation you will need:

  • A running and unlicensed OAS instance with an internet connection
  • Your serial number
  • The Configure OAS application with access to the OAS instance

Steps

  1. Open Configure OAS and login to the running OAS instance.
  2. Open the Configure > License screen.
  3. Click on the ELECTRONIC ACTIVATION screen.

  1. Provide a valid serial number and click OK.

  1. Once activated you will see a License Code and License Key with other license information such as expiry, number of tags, enabled products and enabled drivers.

Licensing Overview

The OAS Platform is a licensed product. Each server instance running the OAS Platform must be licensed.

Once a license is purchased a serial number will be issued. This represents the master license serial number. With this serial number you can activate your OAS instances.

An example serial number is ABC_241105_1234. This serial number is your unique key and is mapped to your purchased OAS capabilities:

  • The number of server or container instances
  • The number of tags per instance or distributed across instances (flex tags)
  • Distributed networking (DNA) enabled or disabled
  • The enabled features (products and connectors)
  • The maintenance expiry date

Your license must be activated on unique server instances (depending on how many instances your license includes). Once activated, the license is tied to that specific server based on parameters such as the system component and IDs.

Your license can be moved if you hold a valid maintenance contract.

👉 Activate a license 🔗

👉 Move a license 🔗

Containers

Standard server licenses are tied to fixed hosts or the host of a virtual machine. However, if you wish to run OAS on highly dynamic hardware or in Cloud services and you as using services such as Docker and other virtualization platforms, you will need to consider the licensing requirements of OAS. This is because a change in the underlying hardware components or identifiers could trigger a license deactivation.

👉 Docker Installation guide 🔗

The OAS container licenses are designed for this purpose. When running OAS in a container, the license is not activated directly on the running container instance, but instead it is licensed via a separate OAS License Hosting Service. The License Hosting Service supports both Windows and Linux, but it must be installed on server instance where the underlying hardware is less likely to change such as a dedicated server or a VM running on dedicated infrastructure.

The OAS license is activated on the License Host and each OAS container instance will connect to the license host to obtain the license. For example, if the license supports up to 10 container instances, then up to 10 containers can be started and connected to the License Host.

Please note that each activated license is for fixed set of tags per instance and activated features (products and drivers). In other words, each container will have the same number of tags and the same available features. If you need different containers with different features you will have to install multiple License Host instances or you will need a license that covers all possible feature combinations.

Flex Tag Licensing

Flex tag licensing allows you to distribute tags across multiple instances. For example, if you purchased 300K flex tags and 6 instances. You can allocate these tags across the 6 instances.

With a flex tag license you still receive a single master serial number, but you don’t use this to activate OAS. Instead, you decide how many tags you want on each instance and OAS support will issue the serial numbers as per your request. You can then use those serial numbers to activate each individual OAS instance.

Demo License

When you download and install OAS on a server for the first time it will automatically be running in demo mode. This is a 30-day, fully featured instance of OAS with unlimited tags. This is the best way to learn about OAS and prototype your solution with devices and client systems to ensure your requirements can be met.

CSV Export and Import

The CSV Export and CSV Import features allow you to backup, load and update OAS configuration data using the well-known CSV format. This format is human readable, compatible with Excel and other data processing tools, can be converted to and from other formats such as JSON and XML and is often supported by database export and import tools.

This feature is useful for tasks such as:

  • Legacy data migration into OAS from external databases and files
  • Bulk data transformation and integration from third party systems
  • Generating seed (initial) data from a spreadsheet or template
  • Updating OAS data in bulk using Excel instead of manually clicking in Configure OAS
  • Creating human readable data backups
  • Regularly exporting data to analytics systems

The CSV Export and Import features are available on every Configure OAS screen except the status and license screens, and through the OAS APIs.

Data Format

The first line should contain the correct column heading names.

The first column is required as well as the last column named Last Column.

The first column is used as the primary key to determine whether the given configuration entry already exists.

If the entry doesn’t exist the data will be inserted as a new item. Any parameters where the corresponding column is not provided will be set with a default value.

If the entry already exists, all parameters will be updated according to the data being imported. Any parameters where the corresponding column is not provided will not be changed and the data will remain as is.

The default CSV data format requires that each column be separated by a comma (,) delimiter and each row of data is on a new line.

To change the CSV delimiter you can configure a different delimiter on the Configure > Options > Common tab.

Nested Data

Each configuration type (Configure OAS screen) has a different set of parameters that are exported. For some configuration types there are also nested configurations that are exported. For example, when using CSV Export on the Data Route screen the main CSV file that will be exported will contain a list of the Data Route groups. However, because each Data Route group also contains a Tags configuration, this also needs to be exported.

This file will be created with the same file name, but the Data Route group name will be appended to the file name. This means one additional file will be created for each Data Route group.

If the exported file name is DataRoutesExport.csv and you have one Data Route group configured with the name MyDataRoute then you will end up with two files:

  • DataRoutesExport.csv
  • DataRoutesExport_MyDataRoute.csv

As long as you don’t change the file names, you can use this format to import the DataRoutesExport.csv file and each Data Route Tags configuration will be imported automatically.

The screens that have nested configurations will also provide the CSV Import and CSV Export functionality for the nested data. You’ll often find it included in a table such as a Tags list. The Data Route example is shown below.

Column Header Templates

If you need to know the column header names for a particular configuration screen, the best way is to create an example configuration item and the use the CSV Export feature to see what the resulting data file looks like.

For example, if you want to see what the Tags screen configuration looks like when exported, create a Tag and then use CSV Export. When you open the exported file in Excel or a text editor you will see the column names.

Import CSV

When you use the Import CSV feature the data you import will be imported into the OAS instance you are connected to. Open the screen where you want to import some data. You will need to have your data file prepared with the correct column names and delimiter type as outlined in previous sections.

  1. Click on the CSV Import button to open the file selection dialog.
  1. Select the file you want to import and click Open.
  1. You will see an import results dialog which will tell you how many new items were inserted and how many items already existed that were updated. In the following example all of the Tags already existed and were updated.

Export CSV

You can use the CSV Export feature to export all configuration data on the selected screen to file.

  1. Click on the CSV Export button to open the file selection dialog.
  1. Provide a file name and click on Save button.

Your exported file will be saved in the specified location. As outlined in the Nested Data section above, some of the configuration screens will export more than one file.

👉 The Tags screen supports some additional CSV Export functionality. You can find this information in the Configure OAS – Tags section.

Save and Load Configuration

Your OAS Engine service (the Windows or Linux service) will typically always be running unless you need to refresh the OAS instance to reboot your server or troubleshoot OAS. All of the current configuration is stored in memory and can be managed using either the Configure OAS application or one of the configuration APIs. As long as the OAS Engine service is running, you can make changes to the configuration irrespective of whether OAS is in the Running or Stopped state.

You can start and stop the OAS runtime without stopping the overall OAS Engine service. When the runtime is stopped OAS will not connect to any device and will not process any data. You can learn more about this in Local and Remote Configuration section of the Overview – Configure OAS page.

If OAS is in the Running state any configuration changes will apply immediately. You will need to stop the runtime if you want to load a configuration file, but note that this will stop OAS from processing and communicating.

In Configure OAS you will see the runtime state in two possible states. The hostname of IP address of the instance you are connected to will be shown.

⚠️
You will not lose your configuration if you start or stop the OAS Runtime. However, if you stop the OAS Engine Windows/Linux service, then any unsaved configuration will be lost.

Default Configuration Files

When the OAS Engine service is started it will automatically load the configuration from a set of files as configured in the Options > Default Files screen. These are known as the Default Configuration Files. Configurations for each screen are stored in independent configuration files.

💡
The Tags and Drivers screen share the same configuration file.

By selecting the configuration and providing a file path, you are telling OAS which types of configurations and which corresponding file you want to load when the OAS Engine service is started. Any configurations that are not specified will start with an empty configuration.

⚠️
It is important to understand that changing the OAS configuration will immediately update the OAS instance that is running, but to ensure that changes are not lost when the OAS Engine service is restarted, the configuration needs to be saved to file and set in the Default Files screen

Saving Configuration

You can save the configuration at any time as long as you are connected to a local or remote OAS Engine. This can be done using the Save button on any of the Configure OAS screens where saving is supported.

Each screen will save the configuration to a file with a different file extension.

Some screens do not have a Save button as any changes are saved immediately. The following screens are saved automatically:

  • Options
  • Security
  • Users
  • License

To save a configuration, click on the Save button.

In the dialog window provide a File Name. The file extension will be automatically set for each screen. Click on the Save button.

If this is a new file name, it will ask you if you want to make this the default file so that your configuration is loaded when the OAS Engine service is started.

If you click Yes the corresponding default file setting in the Configure > Options > Default Files tab will be automatically updated. For example, if you updated the Tags screen you will now see something like this.

Your Tags configuration will now be loaded from this file whenever the OAS Engine service is started.

💡
Windows: Configuration files will always be stored in the C:\ProgramData\OpenAutomationSoftware\ConfigFiles folder.
💡
Linux: Configuration files will always be stored in a ConfigFiles sub-folder of the OAS installation directory.

Loading Configuration

You can manually load a configuration file using Configure OAS or one of the OAS APIs.

⚠️
If you are loading Tags or Drivers configuration via the Tags file you will have to stop the OAS Runtime. Stopping the Runtime will stop any data processing and communications.
  1. If you are loading a Tags configuration file, you will first need to stop OAS Runtime. Otherwise continue to step 2. Click on the Stop Runtime button to stop the runtime.
  1. Click on the Load button.
  1. Select the configuration file that you want to load. It will automatically show only the configuration files with the correct file name extension that matches the screen you are currently configuring.
  1. If your OAS Runtime was stopped, start the runtime by clicking on Start Runtime. OAS will then start communications and process data.
💡
In a typical production environment you will have your configuration files defined in the Configure > Options > Default Files screen so that when the OAS Engine service is started due to a server reboot or is re-started after an updated, the configuration files will be automatically loaded.

Configuration APIs

You can save and load OAS configuration using the OAS configuration APIs.

For REST API see:

For Dotnet API see:

Update

If you have already installed OAS you can update your system using the Manual or Automatic update method.

⚠️ You should take care not to delete the installation director or the Config directory containing your options, security and license data. These files can remain and your OAS product will remain activated.

In Windows, the configuration files are located in: C:\ProgramData\OpenAutomationSoftware\ConfigFiles,

In Linux, the configuration files are located in the Config directory of your OAS installation path.

Automatic Update

To upgrade an existing system open the Configure OAS application using “Run as Administrator: mode and then select the Configure > License menu and click on the Update Version button.

It is recommended that you first save your changes. It is also recommended to close all Internet Browser applications if you are using UIEngine.

⚠️ Note that the OAS Engine will be stopped during the update process.

The installation process will first confirm the version number and request your confirmation. Click Yes to proceed.

Do not close the Configure OAS application. A message will be displayed during download and installation. The Configure OAS application will close automatically.

You can verify your software version on any screen in the Configure OAS application.

Manual Update

First download the OAS Platform.

For Windows uninstall Open Automation Software in the Programs and Features settings menu of your Windows operating system. Once uninstalled run the new setup and start the OAS Services.

For Linux simply copy in the extracted files to the OAS Engine directory.

Configure OAS – Tags

The Tags configuration screen in the Configure OAS application provides the following high level features:

  • Create, update and delete Tags and Tag Groups
  • View latest tag value, timestamp and quality
  • Write to a tag value
  • Configure tag alarm limits
  • Configure data route target
  • Configure tag Sparkplug B parameters
  • Advanced alarm acknowledgement and scheduling
  • Turn on tag statistics (Time On and Count and Tag Totals)

👉 To learn about Tag Groups and Tags check out the Tags Overview page 🔗

The Tags configuration screen lists all Tag Groups and Tags on the left hand tree menu. The main right hand side allows you to configure the Tag’s parameters.

Tag Groups and Tags List

The left hand side panel lists all of your tag groups and tags in a hierarchical tree menu. You can think of Tag Groups as folders and Tags are like files in a folder. You can organize your Tags into logical groups and design the data model that best fits the solution you are trying to create.

Tag Groups

The Tags Tag Group is the base or root Tag Group. You cannot delete or rename this Tag Group.

Add Tag Group

To add a Tag Group first select the root Tag Group or the Tag Group where you want to add a Tag Group. This will be the parent Tag Group or the new Tag Group. Either click on the ADD GROUP button or right click on the parent Tag Group and select Add Group. Provide a name in the dialog window that appears. The Tag Group name has to be unique within the parent Tag Group.

Delete Tag Group

To delete a Tag Group first select the Tag Group you want to delete. Make sure it is highlighted. Right click on the Tag Group name and select Delete Group or use the Delete key on your keyboard. Click Yes in the confirmation dialog to delete the Tag Group.

Rename/Duplicate Tag Group

To rename a Tag Group you can use the Duplicate function. This will create a new Tag Group with the new name and same Tag structure. The duplicate Tag Group will be created at the same level in the hierarchy as the Tag Group being copied.

You can also use this to copy an existing Tag structure and create a new copy of it. This is useful when you have a particular data model and you want to re-use the same Tag structure in a new copy.

Tags

Tags are contained in Tag Groups. You can organize your Tags into as many different Tag Groups as you want, including in the root Tag Group, to create an appropriate representation of your data or process.

Add Tag

To add a Tag select the Tag Group in which you want to create the Tag. This can also be the root Tags Tag Group. It is often best to first create your Tag Group structure. Once your Tag Group is selected, either click on the ADD TAG button or right click on the Tag Group and select Add Tag from the context menu. Provide a name in the dialog window that appears.

Delete Tag

To delete a Tag first select the Tag Group you want to delete. Make sure it is highlighted. Right click on the Tag Group name and select Delete Group or use the Delete key on your keyboard. Click Yes in the confirmation dialog to delete the Tag Group.

Duplicate Tag

To duplicate a Tag you can use the Duplicate function. This will create a new Tag with a new name and copy all of the properties from the original Tag. The duplicate Tag will be created in the same Tag Group as the original Tag.

Rename Tag

To rename a Tag first select the Tag and make sure it is highlighted. Edit the Tag name in the Tag Name field and then click on the Apply Changes button or press the Enter key on your keyboard. Click Yes in the dialog window to confirm the update.

Tag Group Export to CSV

Instead of exporting all of your tags, you can choose to only export tags in a particular Tag Group. This will include all descendant Tags in the selected Tag Group hierarchy.

Delete with CSV

If you need to delete a large number of tags, you can use the Delete with CSV feature. The standard CSV Import feature can only insert and update data.

  1. Select the root Tags item or select any Tag or Tag Group and click on Delete with CSV.
  1. In the confirmation dialog click Yes to confirm that you want to delete tags using CSV delete.
  1. Select a CSV or text file where the first row contains at least one column called Tag and the tag path on each subsequent row.

    A quick method to create this file is to use the Export to CSV functionality and in the CSV Column Selection dialog deselect all of the items. This will result in a CSV file that only contains the tag name. You can then use Excel to remove any tags you want to keep so that only the tags you want to delete remain.
  1. Once the tags have been removed you will see a confirmation dialog window.
💡
This feature will only delete the Tags and not the Tag Groups, so you’ll have to manually delete the Tag Groups. The alternative is to export all of your Tags, keep only the tags that you want to keep, use the Delete All menu to remove all tags and then use CSV Import to load only the tags you want.

Overview – Configure OAS

The Configure OAS application is the primary configuration tool for configuring the OAS platform. It can be used to configure both locally installed and remote OAS instances as long as the remote instance is reachable via a network from the host where Configure OAS is used.

Currently, Configure OAS can only run on a Windows host, however you can use it to configure any OAS instance running on Windows or Linux, as well as Docker or Raspberry Pi.

In this guide you will learn about the Configure OAS application’s main features and screens.

Installation

Configure OAS is installed by default when you install the OAS platform on a Windows host.

Custom Installation

You can also install the Configure OAS application without installing the main OAS services. This can be useful if you have a configuration or maintenance server that users will use to configure remote OAS instances. This is especially useful if you have Linux or Docker installations and you need to configure them using Configure OAS. To achieve this, make sure you select a Custom installation type when installing OAS.

In this example we will only install the Configure OAS application and the Trend and Alarms Dashboard. Both of these applications can connect to remote OAS instances.

Starting Configure OAS

The Configure OAS application can be started from the Windows start menu. You can find it there by searching for Configure OAS or by locating it in the Open Automation Software start menu folder. The icon will look similar to this example.

Local and Remote Configuration

Because the Configure OAS application is a stand-alone application, it can be used to configure any running OAS instance that can be reached either locally on the same host or on the network where the Configure OAS application is installed. If you are connected to the internet, it can even access any publicly accessible OAS instance host as long as you have the IP address or the host name and the OAS services are exposed.

During login and within the OAS instance you have the option to select the Network Node that you want to connect to. The term Network Node simply means the IP or hostname of the local or remote OAS instance that you wish to configure.

In the login dialog window you can provide a Network Node:

When you open a configuration screen, you can also set the Network Node you want to access:

Note that once you login, those credentials will be used for all configuration actions with an OAS instance. This assumes that you have the same username and password configuration on all your network nodes, otherwise you’ll have to login with different credentials and then update the network node.

Main Window

When you launch the Configure OAS application you will see a toolbar and a blank surface below this.

Logged Out State

By default, the Configure OAS application is in a logged out state with no configuration screens open.

Here is an overview of the menu items:

Menu Item Description
File Use the File > Exit menu item to close the application.
Configure Access to the configuration screens.
Log In Login as an authenticated user.
Theme Select a light or dark theme.
Accent Select the theme accent.
Help Access further help and resources.

Login

When you access a configuration screen in the Configure menu, Configure OAS will ask you to login. If you have installed OAS for the first time you will be asked to set up a new Admin account password. This will give you full access to Configure OAS. If you are logging in to an existing OAS instance you can use whichever user accounts you have configured for the instance you are configuring. This will depend on your security configuration.

If you have security configured where the Default security group has been restricted and you cancel the login, the configuration screen will still load, but you will see error messages.

Logged In State

After you login, you will see the username that you used to login appear in the toolbar and the Log In menu item will now say Log Off.

Configuration Screens

The Configure OAS configuration screens allow you to configure all of the various OAS platform features. You can access each screen by selecting the screen name from the Configure menu. This menu is organized by OAS features.

Here is a list of available screens and associated Knowledge Base links to help you find more specific information:

Configure Menu Item Description KB Links
Quick Start Open the Quick Start Guide application
Tags Manage Tags and Tag Alarm Limits Overview – Tags
Drivers Manage Device Connectors Connectors
User Interface Opens the UIEngine configuration and viewer website in your default browser OAS Open UIEngine Documentation
Data Logging Manage data logging to database and CSV files Overview – Data Logging
Alarm Logging Manage alarm logging to database and CSV files Overview – Alarm Logging
Alarm Notifications Manage alarm notifications to E-mail, SMS and Voice Overview – Alarm Notification
Alarm and Event OPC Servers Present OAS Alarms as an OPC Alarms and Events Overview – Tags
Reports Manage reports Overview – Reports
Recipes Manage Recipe for batch data ingestion from a database Overview – Recipe
Data Route Manage Data Routes for Tag to Tag data transfer Overview – Data Route
Excel Open the OAS Excel Tag Browsing assistant Excel
Live Data Cloud Configure hosting via Live Data Cloud Live Data Cloud Networking
UDP Broadcast Configure the Broadcast side of a Unidirectional Gateway connection Getting Started – Unidirectional Network Gateway
UDP Receive Configure the Receiver side of a Unidirectional Gateway connection Getting Started – Unidirectional Network Gateway
Security Manage security groups Getting Started – Security
Users Manage users and map them to security groups Getting Started – Security
Options OAS instance configuration options Options
System Status OAS instance system status
System Errors OAS instance system error list
Container License OAS Docker and VM container license management License Activation
License OAS instance license management License Activation

Options – Reference

Alarms

Clear Hi and Lo Alarms when HiHi and LoLo occurs

You can use this setting to automatically clear and acknowledge Hi and Lo alarms if a HiHi or LoLo alarm occurs respectively. These two set-points are independent so you can use either one or both together. However, note that a Lo or LoLo cannot be cleared by a Hi or HiHi and vice versa.

If you have a Lo and a LoLo alarm threshold configured, then the Lo alarm will be cleared and acknowledged once a LoLo alarm occurs.

Similarly, if you have a Hi and a HiHi alarm threshold configured, then the Hi alarm will be cleared and acknowledged once a HiHi alarm occurs.

You can use all four setpoints if you like, the only thing to note is that if a LoLo occurs and after some time a Hi and then a HiHi occurs, the LoLo will not clear automatically. Similarly, if a HiHi occurs and after some time a Lo and then a LoLo occurs, the HiHi will not clear automatically.

This setting allows you to escalate your alarms without polluting the alarm screen with both alarm setpoints.

Default: Disabled

Keep Alarms when Disabled and Normal and Not Acknowledged

When this setting is disabled, an active alarm will be cleared and acknowledged if the alarm setpoint is disabled.

When this setting is enabled, an active alarm will be cleared, but not acknowledged if the alarm setpoint is disabled.

You can use this to ensure any active alarms cannot vanish from your alarm visualisations if the alarm is disabled for whatever reason. For example, you might disable alarms when you do maintenance to prevent any new alarms, but you don’t want to automatically acknowledge any alarms that were already active.

Default: Disabled

Update Alarm Status Immediately without Alarm Time Delay

Every Tag has a boolean AlarmActive property for each alarm threshold type to indicate whether the alarm is active or not. If the relevant AlarmActive parameter is True it means that the alarm is active.

The following alarm status parameters are available:

  • HighHighAlarmActive
  • HighAlarmActive
  • LowAlarmActive
  • LowLowAlarmActive
  • DigitalAlarmActive
  • ROCAlarmActive

When this setting is disabled, the relevant AlarmActive property will only become True once the alarm delay has expired.

When this setting is enabled, the relevant AlarmActive property will become True as soon as the alarm threshold is met.

This setting is useful if you want to know if an alarm threshold has been met irrespective of the delay or if are using calculation tags where you want to know if a particular alarm setpoint has been reached so you can immediately trigger another condition.

Default: Enabled

Set Alarm Date and Time with Time Delay

This setting relates to the alarm timestamp of real-time alarms and whether it includes the alarm delay or not. This impacts alarm timestamps in real-time alarm data tables, alarm visualizations and alarm logging history.

When this setting is disabled, the alarm timestamp is set to the timestamp of when an alarm limit is reached and does not include the delay.

When this setting is enabled, the alarm timestamp is set to the timestamp of when the alarm limit is reached and the alarm delay expires.

Default: Disabled

Retain All Realtime Alarms to Show All Occurrences in Window

When this setting is disabled each instance of an alarm for a particular tag alarm limit will replace the previous alarm instance if it is still unacknowledged.

Let’s say you have a Digital alarm limit configured on one of your tags. When this alarm occurs, the alarm will be displayed on the alarm screen. Once it clears it will be shown as cleared and unacknowledged. When this alarm occurs again, OAS will remove the previous alarm from the real-time alarms and display the new alarm instead. The old alarm will remain unacknowledged in the database if you have alarm logging enabled.

With this setting disabled only the most recent alarm instance will be shown. In terms of alarm logging, it will still log each alarm instance assuming you have the relevant filters configured.

When this setting is enabled each alarm instance will be retained in the real-time alarm screen.

Let’s say you have a Digital alarm limit configured on one of your tags. When this alarm occurs, the alarm will be displayed on the alarm screen. Once it clears it will be shown as cleared and unacknowledged. When this alarm occurs again, a second alarm instance will be added to the real-time alarms. Previous alarms will only be removed from the screen if you acknowledge the alarm (and your alarm filters are not configured to show inactive and acknowledged alarms.)

This setting allows you to display every instance of an alarm to your operators rather than just the most recent instance. This is an important feature if you require all alarm instances to be acknowledged even if already cleared.

Note that since alarms will never be removed from the real-time alarms table you will need to make sure your OAS host has sufficient memory to deal with the number of expected alarms over time. It is a good idea to use the Remove Old Alarms from Realtime Alarms option to automatically clean out old alarms based on an expiration time.

Default: Disabled

Remove Old Alarms from Realtime Alarms

Removes cleared and acknowledged alarms from real-time alarms when the alarm date and time is older than the given number of hours.

This setting is used together with the Retain All Realtime Alarms to Show All Occurrences in Window feature to ensure memory consumption does not grow beyond a manageable amount.

⚠️ Warning: This feature will remove alarms older than the configured number of hours irrespective of the state, including active and unacknowledged alarms.

Default: 0 hours

Delay Alarm Logging and Notification on Startup

When enabled, this feature ignores alarm limits when OAS first enters runtime mode until the given number seconds elapses.

This setting is useful for allowing your system to reach a steady state before monitoring your alarm limits. This can be useful for things like taking into account device first time connection delays, waiting for external services to start and waiting for the first data poll.

Default: 0 seconds

Remove Carriage Return and Line Feed from Alarm Text

Each Tag alarm limit has the option to create alarm text from dynamic sources. In cases where the alarm text contains carriage return or line feed characters, for example due to the constraints of an external system, this feature can be enabled to remove those characters and ensure your alarm screen and text is not impacted.

Default: Disabled

Enable Writes as Operator Events

This setting can be used to create a log of all write events performed by operators in OAS UI Engine, Windows Forms, WPF and Web controls using the real-time and alarm logging features. When this setting is enabled, any writes to a Tag value will be logged in real-time alarms as an Operator Event alarm type and group.

The operator’s username and the value written will also be logged.

This setting is useful for change auditing. You can use alarm logging with alarm filters to only log Operator Event alarms to keep the operator events separate from normal alarm logging.

Default: Disabled

Remove Cleared Alarms with Comment Containing

This setting allows you to remove an alarm from the real-time alarm screen when a comment is added and the comment contains the string configured in this setting. A comment can be added whilst the alarm still still active, but the alarm will only be removed once the alarm clears.

It is important to note that the alarm will be removed from the real-time alarms, but no acknowledgement state or timestamp will be logged in the alarm history.

Default: Empty string

Redundant Remote Services to Ack Alarms

This setting allows you to specify the alarms that will be acknowledged on a remote redundant OAS instance when alarm are acknowledged on the instance you are configuring. This is useful when you have more than one OAS instance acting as a redundant instance and when an alarm is acknowledged on a primary instance, your redundant instances will also acknowledge the alarm.

This setting is configured by specifying all of the host names or IP addresses of the remote OAS instances where you want alarms to be acknowledged.

Default: Empty list

Common

CSV Export Delimiter

This setting allows you to specify the delimiter that is used when exporting or importing configuration data using CSV files in the Configure OAS application or using an API call.

Default: ,

Array Delimiter

This setting allows you to specify the delimiter that is used when parsing arrays from string values.

Default: ,

Data Log

Override All Data Log Servers

This setting is a global override for the data logging host name or IP address for all data logging groups. When enabled, the server host or IP address specified in the Database Server Name setting will be used for all data logging groups.

Default: Disabled

Database Server Name

This setting defines the server host or IP address for the Override All Data Log Servers setting.

This setting is only visible if the Override All Data Log Servers setting is enabled.

Default: localhost

Maximum Connections / Database

This is the maximum number of Database connections that data logging will use for data logging groups that are using the same database server and authentication. For example, with a value of 10 if there are 30 data logging groups that are all using the same database engine and authentication for a connection, there will be 10 connections made to the database engine with 3 logging groups assigned to each connection.

Default: 10

Data Route

Allow Write to Bad Quality Targets

When disabled writes will not occur to tags with bad data quality. Required for MQTT, Sparkplug B, and AWS.

Default: Enabled

Include Quality with Writes to OPC

Include the OPC Quality in writes to Classic OPC Servers.

Default: Disabled

Write Frequency When Bad Quality

he frequency to write values when the destination data quality is bad.

Default: 10 seconds

Default Files

OAS configuration data is distributed across a number of different files depending on the feature being configured. The Default Files screen allows you to enable or disable automatic loading of configuration files when the OAS service is started. Each feature configuration file path can be independently configured.

Configuration files can only be loaded from a fixed configuration folder. On Windows, it is the C:\ProgramData\OpenAutomationSoftware\ConfigFiles directory. On Linux, default configuration files must be stored in the ConfigFiles folder relative to the OAS installation.

The following default configuration file paths can be specified:

  • Tag Configuration
  • Data Logging Configuration
  • Alarm Logging Configuration
  • Alarm Notification Configuration
  • Report Configuration
  • Data Route Configuration
  • UDP Broadcast Configuration
  • UDP Receive Configuration
  • Live Data Cloud Configuration
  • A&E OPC Servers Configuration

Default:
Tag Configuration – “\DemoFiles\DemoTags.Tags”
Alarm Notification Configuration – “\DemoFiles\DemoAlarms.AlarmNotification”

Drivers

Use TimeStamp from Controllers

This setting controls whether to use the timestamp provided by Allen Bradley and Siemens controllers when reading tag values or whether to use the OAS host time.

When this setting is enabled, OAS will use the timestamp provided by the controller when updating a Tag value.

When this setting disabled, OAS will use the current date/time of the host machine.

Default: Enabled

Maximum Driver Threads

This setting defines the maximum number of threads that OAS can use for driver interfaces. This value will depend on available system resources.

Default: 100

Reset Interface on Channel Error

Reset the driver interface on a channel failure when the Driver type is AB Logix, AB Classic, or Siemens.

Default: Disabled

Reset Interface on Device Error

Reset the driver interface on a device failure when the Driver type is AB Logix, AB Classic, or Siemens.

Default: Disabled

Retry Connection Time After Error

The time delay after a channel or device error for AB Logix AB Classic and Siemens.

Default: 60 seconds

Siemens Optimized Polling

Can be disabled to isolate invalid addresses in Siemens Tags. Leave enabled for fastest performance in production.

Default: Enabled

File Data Source

Alarm Group for Errors

The Alarm Group to assign to alarm instances for errors when an error occurs with saving or loading a value to the file.

Default: FileDataSource

History

Enable History Date Format

This property is required when the database engine language is set to something different than the operating system regional language setting.

When enabled, the date time format must be specified. The default format is “yyyy-MM-dd HH:mm:ss”.

Default: Disabled

Maximum Web Alarm Records

The maximum number of alarm history records to return to a web client request.

Default: 100

Live Data Cloud

Disable Live Data Cloud

This property will restrict what remote OAS Engines can self host through this service. When enabled only the specific Live Data Cloud nodes that are added to the Allowed List will be able to self host through this service.

Default: Disabled

MQTT Broker

OAS MQTT Broker ID

The ID of the OAS MQTT broker.

Default: OAS

OAS MQTT Broker Port

This setting defines the port on which the MQTT broker will listen for connections that do not use encrypted connections.

Default: 1883

OAS MQTT Broker SSL Port

This setting defines the port on which the MQTT broker will listen for connections that use encrypted connections.

When this setting is enabled, the OAS MQTT Broker Enable SSL setting should be used to specify the SSL configuration.

Default: 8883

OAS MQTT Broker Enable SSL

Enable encryption over SSL using the private key specified in the MQTT Private Key File setting and the private key password specified in the MQTT Private Key Password setting.

Default: Disabled

MQTT Private Key File

This setting is only visible if OAS MQTT Broker Enable SSL is enabled.

Default: Empty string

MQTT Private Key Password

This setting is only visible if OAS MQTT Broker Enable SSL is enabled.

Default: Empty string

MQTT Client Username

The username for the OAS MQTT broker.

Default: Empty string

MQTT Client Password

The password for the OAS MQTT broker.

Default: Empty string

Topic Aliases

Provides a way to map topic names to a tag names. Only required if the MQTT client cannot adjust topic names to match tag names.

Default: Empty list

Networking

Primary Port Number

The primary TCP port number that is used for service to service communications and client to service communications for this service.

Default: 58727

Backup Port Number

The backup TCP port number that is used for service to service communications and client to service communications for this service.

Default: 58737

Enable Classic TCP (Unsecure)

Enable this property if the remote services or applications are using the classic OAS TCP interface.

Default: Disabled

OAS OPC UA Server Port

The port number that is used for the Open Automation Software OPC UA Server.

Default: 58728

REST API and Web Port Number

The port number that is used for REST API and Web interfaces.

Default: 58725

REST API and Web Use SSL

Use SSL for REST API and Web interfaces.

Default: Disabled

REST API and Web Certificate ID

The Certificate ID for REST API and Web interfaces when the service is running on Windows OS.

Default: None

Client Packet Rate

The communication rate between the service and remote services and client applications. Use a faster rate if you want to have faster communications.

Use the default of 100 ms if there are more than 100 client applications connecting to the service.

Use 1,000 ms if there are more than 1,000 client applications communicating to this service.

Default: 30 milliseconds

Websocket Update Rate

The maximum communications speed from the UI Engine. Set to a value of 0 to allow all tag values with no restriction.

Default: 100 milliseconds

Web / REST WCF HTTP Size

The Max request size for Web HMI and REST API.

Default: 2147483647

Web HMI Session Timeout

The timeout for a Web HMI session that will close if there is no activity over the time period.

Default: 30 minutes

REST API Session Timeout

The timeout for a REST session that will close if there is no activity over the time period.

Default: 30 minutes

Web / REST Remote Tag Timeout

The inactivity timeout for Web HMI and REST API tag monitoring from remote nodes. If there are no tags requested to the remote node within this timeout the continuous communications will stop.

Default: 300 seconds

Network Nodes

Enter IP Addresses, Network Nodes, or Registered Domain Names that will appear under the Client Network browse. Useful when browsing remote services and Classic OPC Servers.

Default: Empty list

OEM

OEM Code

When this string is set the service will perform special operations. You can use any of the following in combination any any combination with each other.

  • DBLOG – Logs data logging transactions for all logging groups to the directory specified for the error log under System Logging.
  • DBLOG-Logging Group Name – Logs data logging transactions for only a specific logging group to the directory specified for the error log under System Logging.
  • NETWORK – Logs all network communications to the directory specified for the error log under System Logging.
  • THREADS – Logs a transaciton file for execution rates for all threads.
  • ALARMLOGCLEAREDDATETIMEUPDATESALARMDATETIME – Sets the alarm instance alarm date and time to the cleared date and time when the alarm clears.
  • HOLDTRIGGERVALUE – Holds the trigger value within the value updates to repost at the end of the data events.
  • MOVBADQUALITY – Sets the Tag quality to bad if a Calculation Tag with a moving statistic function and the data source is bad.
  • LOGTRENDCACHE – Logs the status of the internal trend cache to a file beginning with TrendCache at the time the OEM Code is set. Set to blank and back to LOGTRENDCACHE again for each time you want to record to a file.
  • DISABLETAGCLIENTNETWORKALARM – Disables alarms from tag client network failures.

Default: Empty string

OPC

Browse OPC UA Variables

Browse variables within other variables from OPC UA servers.

Default: Disabled

Value Only in OPC UA Browse

Show only Value of tag when browsing Open Automation Software OPC UA Server.

Default: Disabled

Max Publishing Interval

The Max Publishing Interval for the Open Automation Software OPC UA Server. Requires service restart for change to take effect.

Default: 0 seconds (unlimited)

Allows OAS OPC UA Server

Overrides Default Security to allow tag browsing and reading and writing to tags from Open Automation Software OPC UA Server.

Default: Disabled

Classic RSLinx Fix for Browsing

RS-Linx OPC Server has different versions with various browsing errors. Enabling this setting will implement a workaround for the browsing errors in older versions of RS-Linx. This fix is sometimes incompatible with some older versions of RS-Linx. When enabled select Refresh in the OPC browse window.

Default: Disabled

OPC Server WatchDog Rate

The number of Seconds the OAS Service will expect data from each OPC Server.  If the OPC Server does not have a data change within this period the OAS Service will disconnect from the OPC Server and reconnect to try and re-establish the connection.

Set this value to 0 to disable the OPC Server Watchdog feature.

Default: 60 seconds

Use TimeStamp from OPC Servers

All values from OPC UA and Classic Servers include a timestamp. When this property is enabled the timestamp from the OPC server values will be used. When disabled the timestamp for the values will be set to the local CPU clock time when they are received from the the OPC server.

Default: Enabled

Read Values After Write

When enabled a sync read is called for OPC Items after they are written to. This can get the value back from the OPC server quicker, but can also cause extra load on the server if there are a lot of writes.

Default: Disabled

Wait for Device Read and Write

Some OPC Servers do not handle multiple pending requests. This is a workaround for these OPC Servers to only call one device read read or write at a time.

Default: Disabled

Ignore OPC Quality Flags

When this property is enabled the quality attribute of a value returned from OPC Servers will be ignored.

Default: Disabled

Classic OPC Primary and Backup IP/hosts

List of Classic OPC DA OPC Servers as backup OPC Servers to primary OPC Servers.

Both primary and backup OPC Servers can optionally include IP Address or network node name.

Without network node example: EEI.OPCSimulator

With network node example: \\127.0.0.1\EEI.OPCSimulator

Default: Empty list

Remote Services

Client Primary Port Number

The primary TCP port number to communicate with remote services. The remote services would have this TCP Port number specified under the Networking tab in their configuration as the hosting port number.

Default: 58727

Client Backup Port Number

The backup TCP port number to communicate with remote services. The remote services would have this TCP Port number specified under the Networking tab in their configuration as the hosting port number.

Default: 58737

Client Watchdog Rate

A reconnect will occur to remote services if no communication occurs within this timeout.

Default: 10 seconds

Hold Last Good Value On Network Tags when Network Fails

Holds the last good value received from remote services when the network fails. The default for this property is disabled, so normally the tag quality will go to bad quality on network failure. With this property enabled the quality is kept good and just holds the last good value for each tag received.

Default: Disabled

Security User Name

Access to remote services may be restricted by security setup on the remote service. This is the user name used to gain access to remote services.

Default: Empty string

Security Password

Access to remote services may be restricted by security setup on the remote service. This is the password used to gain access to remote services.

Default: Empty string

OPC UA Security Access

Security log in method to local and remote services for browsing tags and reading and writing tag values.

OASServiceUser – Use the Security User Name and Security Password settings when authenticating.

OPCClientUser – Use Username and Password from OPC Client authentication.

Default: OASServiceUser

Retain Values

Retain Values and Alarm Limits of Tags with Data Source of Value

When enabled, the default path for the retain file is “\RetainValues\OAS.RealTimeValues” with a frequency of 0 hours (only at system shutdown).

Default: Disabled

Retain Times and Counts

When enabled, the default path for the retain file is “\RetainValues\OAS.TimeAndCounts” with a frequency of 0 hours (only at system shutdown).

Default: Disabled

Retain Totals

When enabled, the default path for the retain file is “\RetainValues\OAS.Totals” with a frequency of 0 hours (only at system shutdown).

Default: Disabled

Retain Real-Time Trends

When enabled, the default path for the retain file is “\RetainValues\OAS.RealTimeTrends” with a frequency of 0 hours (only at system shutdown).

Default: Disabled

Retain Real-Time Alarms

When enabled, the default path for the retain file is “\RetainValues\OAS.RealTimeAlarms” with a frequency of 0 hours (only at system shutdown).

Default: Disabled

Save Tag Configuration Write To Tag with Data Source of Value

Will store the entire tag configuration each time a write occurs to a Tag with a Data Source of Value or File.

Default: Disabled

Store and Forward

Store Buffer to Disk

Store data logging, alarm logging, AWS IoT Gateway, and Azure IoT data to file when there are network errors at the source, when the the database engine is not reachable or the table to log to is in a locked state. When enabled the values are stored to the directory specified.

When disabled the values will be buffered to RAM, which can use up memory in the database service if not attended to. Use the Maximum Data Log Records and Maximum Alarm Log Records settings to manage the number of records that will be stored in memory.

Default: Enabled

Directory for Buffer

The directory path to store the data logging, alarm logging, AWS IoT Gateway, and Azure IoT buffer files.

This setting is only visible if Store Buffer to Disk is enabled.

Default: \StoreAndForward\

Limit Disk Buffering

When enabled this property will limit how long the buffer files will be retained. Older files will be deleted without being processed to the database engine.

When enabled, the default amount of time to keep the buffer is 24 hours.

Default: Disabled

Buffer Data for Remote IoT Publish

When enabled this property will buffer the local data when a remote OAS Engine cannot communicate to this OAS Engine for the IoT Publish feature.

Default: Disabled

Buffer On Remote Engine Stop

The data source system will buffer data when the remote data logging or driver interface IoT Publish engine is shutdown.

Default: Disabled

Maximum Data Log Records

This setting is only visible if Store Buffer to Disk is disabled.

Default: 10000

Maximum Alarm Log Records

This setting is only visible if Store Buffer to Disk is disabled.

Default: 10000

System Logging

Log System Errors

Log system errors to file.

You can set this to an absolute path or a relative path to the OAS executable. You can also use the word “console” to log to stdout.

When enabled, the default path is “\Log\OASErrors”.

Default: Enabled

Delete Old System Error Logs

This setting is only visible if Log System Errors is enabled.

When enabled, the default amount of time to keep logs is 7 days.

Default: Disabled

Log Communication Errors

Log communication errors to file.

You can set this to an absolute path or a relative path to the OAS executable. You can also use the word “console” to log to stdout.

When enabled, the default path is “\Log\OASCommErrors”.

Default: Disabled

Delete Old Comm. Error Logs

This setting is only visible if Log Communication Errors is enabled.

When enabled, the default amount of time to keep logs is 7 days.

Default: Disabled

Configuration, Feature and Driver Transactions

The OAS system logging configuration supports logging transactions related to configuration, features and drivers. You can individually enable and disable logging for the following:

  • Log AB and Siemens Comm.
  • Log Alarm Logging Transactions
  • Log Alarm Notifications
  • Log Alarming Communications
  • Log AWS IoT Communications
  • Log Azure IoT Communications
  • Log Calculation Transactions
  • Log CANBus Communications
  • Log Configuration Changes
  • Log Database Communications
  • Log Data Logging Transactions
  • Log Data Route Comm.
  • Log Driver Interface Transactions
  • Log GPIO Communications
  • Log Kafka Communications
  • Log Modbus Communications
  • Log MQTT Communications
  • Log MTConnect Comm.
  • Log OPC DA Communications
  • Log OPC UA Communications
  • Log OPC UA Browse
  • Log OPC UA Alarm and Events
  • Log Option Configurations
  • Log Read Database Data
  • Log Recipe Transactions
  • Log Report Transactions
  • Log REST API Transactions
  • Log System Runtime
  • Log System Startup
  • Log Tag Configurations
  • Log Trending Communications
  • Log UDP Network Comm.

Default: All disabled

Transaction Log Path

Each of the logging settings listed in the above Configuration, Feature and Driver Transactions, if enabled, will log to a file specified in this property. The file name will start with the configured file path and will be suffixed with the feature or driver name, an optional sub-type and the current date and hour. Each feature or driver may create more than one unique file, depending on how many driver sub-types there are.

For example, a Siemens driver will create a file name such as OASTransactions-Driver-S7-1200-2024-10-25-10.txt.

This file name consists of the following parts:

  • OASTransactions – the configured file name in the Transaction Log Path property
  • Driver – a fixed term to indicate that this log relates to a driver
  • S7-1200 – the Siemens device type
  • 2024-10-25 – the date in ISO format
  • 10 – the current hour

A new log file will be created on the hour every hour.

This property is only visible if one of the logging settings in the Configuration, Feature and Driver Transactions is enabled.

Default: \Log\OASTransactions

Delete Old Transaction Logs

When set, any log file older than the given number of days that originated from any of the Configuration, Feature and Driver Transactions logging settings.

This property is only visible if one of the logging settings in the Configuration, Feature and Driver Transactions is enabled.

Default: Disabled

Log UDI Transactions

Log transactions between OAS and custom drivers that use the Universal Driver Interface (UDI) API to a file specified in this property. The file name will start with the configured file path and will be suffixed with the current date and hour.

A new log file will be created on the hour every hour.

When enabled, the default path is “\Log\OASUDITransactions”

Default: Disabled

Delete Old UDI Trans. Logs

When set, any UDI transaction log file older than the given number of days will be deleted.

This setting is only visible if Log UDI Transactions is set.

Default: Disabled

Include Comm. Errors in Alarms

Include individual communication errors in alarms.

Default: Disabled

Include Comm. Errors in Error Log

Include individual communication errors in communication error log.

Default: Enabled

Include Tag Errors in Alarms

Include individual tag communication errors in alarms.

Default: Disabled

Include Tag Errors In Error Log

Include individual tag communication errors in communication error log.

Default: Enabled

System Startup

Auto Runtime On Service Start

When enabled, the OAS engine will automatically try to enter Runtime mode after the OAS service is started. A delay can be configured using the Time Delay to Start Runtime setting.

Default: Enabled

Time Delay to Start Runtime

The time delay in seconds between starting the OAS service and the engine entering runtime mode.

Default: 1 second

Time Delay to Process Alarms

This setting defines the number of seconds alarms should be ignored after the OAS engine enters runtime mode.

Set Affinity of OAS Engine

Enables the OAS Engine Affinity Mask setting to allow you to set the affinity of the OASEngine process.

Default: Disabled

OAS Engine Affinity Mask

Default: FFFF

Set Affinity of Data Service

Enables the Data Service Affinity Mask setting to allow you to set the affinity of the OASOPC process.

Default: Disabled

Data Service Affinity Mask

Default: FFF

Set Affinity of Report Service

Enables the Report Service Affinity Mask setting to allow you to set the affinity of the OASReports process.

Default: Disabled

Report Service Affinity Mask

Default: FFFF

Classic OPC Service Comm. Rate

The communication rate between the OAS Engine and OAS OPC Service

Default: 100 milliseconds

Report Service Comm. Rate

The communication rate between the OAS Engine and OAS Reports Service

Default: 100 milliseconds

Time

Use UTC TimeStamp

All Tag value timestamps will be stored as UTC date and time in the OAS engine memory. When a tag value is updated on the local OAS engine, the local time of the host will be converted to UTC.

This feature is useful when you need to standardize the timestamps of globally distributed systems and allow each local system to deal with the presentation of local time. All of your Tags and data logging would be stored in UTC time and then converted to local time once presented to the user.

⚠️ Note

If you are writing data into OAS from an external system and the timestamp is also being provided, for example when using the Dotnet Data Connector API or the REST API features, then you must ensure that the timestamps are being provided in UTC format if this setting is enabled or in the same time zone if this setting is not enabled.

If you are moving Tag data between OAS engines and you want to use UTC time then you need to enable it on all connected OAS engines.

Default: Disabled

UTCDateTimeString as ISO 8601

This setting affects how timestamp strings are formatted when a Tag is using a Data Source that is set to Time and a Time Type that is set to UTC Date Time String. The following table shows the difference in format and an example when this setting is disabled and enabled.

Default: Disabled

Custom Timestamp String

This setting affects the formatting of a Tag’s timestamp string stored in the TimestampString parameter of each Tag.

Here is an example of a timestamp format configuration:

You can see this in action by creating a Tag and setting its data source to Tag and its Tag property to the TimestampString parameter. The Value returned should be in the specified timestamp format.

When enabled, the default timestamp string format is “yyyy-dd-MM HH:mm:ss”.

Default: Disabled

Trending

Longest Realtime Time Frame

This setting configures how much real-time Tag value data OAS will store in memory for each Tag that is configured as a Trend Point by allowing you to adjust the buffer time window. It is important to consider both the size of the time window in seconds as well as how many Trend Point Tags you will create in your OAS instance. The time window you specify will be applied to each Trend Point Tag’s data. The more tags you have the more data has to be stored and the longer the time window the more data is stored per tag. The limitations of this feature essentially translates to how much RAM you have available on your server.

Default: 86400 seconds

Enable Stepped Trend

When enabled, the trend window time range will be divided by the Number of Steps setting below and will only update in increments defined by this calculation. In other words, if a trend window is configured to display 60 seconds of data and the number of steps is 4, it will only update every 15 seconds. This reduces the continuous motion of the trend and makes it easier to read.

Trend controls included in Dotnet Trend and Web Trend will display real-time data when in real-time data mode. This trend window will automatically scroll to the left so that the latest data at the current date and time is displayed on the right hand side of the trend. In other words, the x-axis continuously shifts to keep up with the current time.

By default, a trend window will display 60 seconds of data and will update every second. This means that the trend will move every second. When setting the Number of Steps the 60 seconds will be divided by the number of steps and the result will define after how many seconds the trend will update.

The trend will still show all of the data based on the sample rate.

Default: Disabled

Number of Steps

Defines the update interval of a trend control, calculated based on the number of seconds visible in the time range (x-axis) divided by the number specified by this setting.

For example, if the visible time range is 60 seconds and this setting has a value of 6, then the trend will only refresh the x-axis current time every 10 seconds.

This property is only visible if Enable Stepped Trend is enabled.

Default: 12

Troubleshooting – License

What will make my license stop working?
  • If you upgrade your software to the latest version without an active maintenance plan that covers that version.
  • If you change the CPU mother board. This includes cloning the image of the drive and restoring to a new PC.
  • If you remove all of the hard disks from the system that were present when the software was licensed.
  • With older OAS version 9 or less if you remove all of the Ethernet cards from the system that were present when the software was licensed.

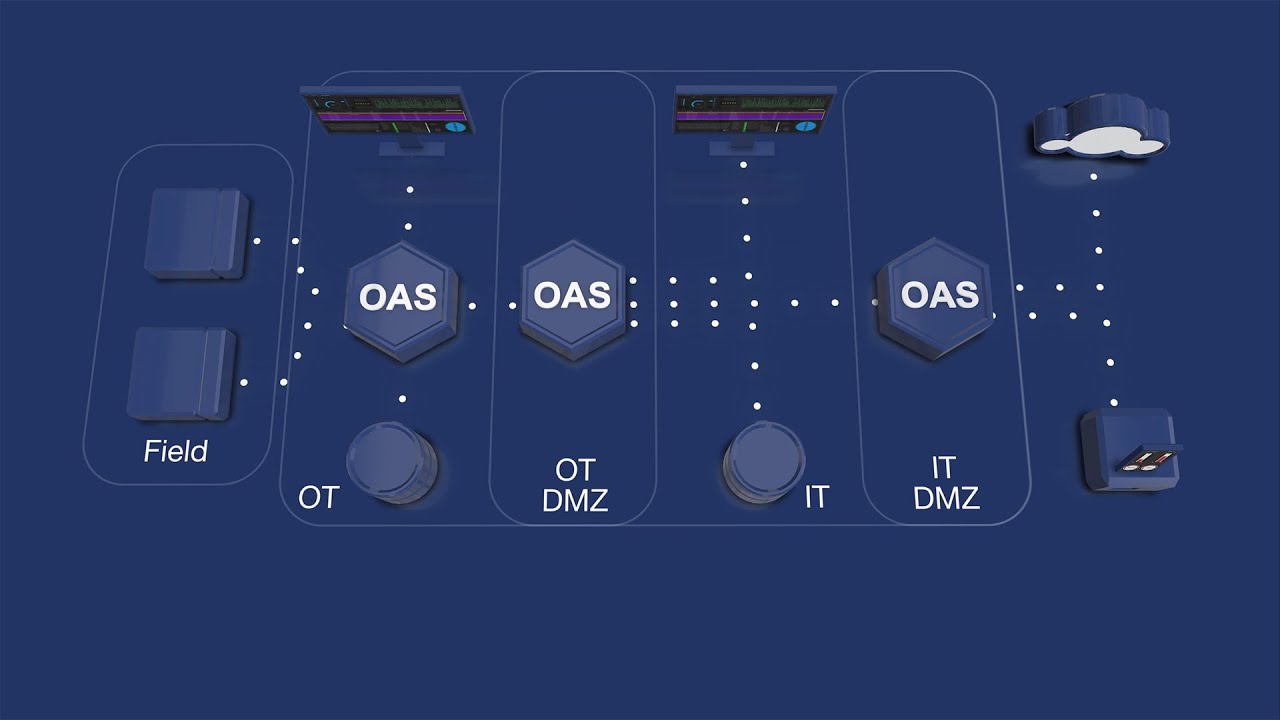

Typical OAS Deployment Architectures

The Open Automation Software is a flexible, configuration based data platform with a virtually unlimited number of possible use cases and solution implementations. In these situations it is useful to keep in mind some common patterns and best practices around concepts such as performance, security, reliability and redundancy. The Distributed Network Architecture (DNA) means OAS can operate across network boundaries and between private and public networks.

Below is a list of some possible OAS architectures and deployment types to cater for many different use cases.

Concentrator

The Concentrator architecture relies on a single OAS instances for connecting to all of your data sources and also hosts all of your data destinations such as data logging and HMI integration. This architecture can be adjusted for redundancy by adding additional instances and exchanging data between them. This architecture works great when you have a simple network, all of your field devices connect directly to a central server and you do not have any requirements for data processing, logging or visualization at the edge.

Edge

The Edge architecture is commonly used when you have multiple remote sites, each on separate edge networks with multiple field devices at each site, and a centralized operations centre. Each edge location can be licensed for a different number of tags, products and drivers, or you can share features across all edge instances and distribute the tags using flex tag licensing. This means you can configure each edge for local requirements as well as facilitate remote data transfer to a centralized location using the OAS Basic Networking feature. Licenses are typically applied at the edge and the centralized OAS instance acts as a data gateway.

An important benefit of this architecture is that the edge OAS instances can be configured to store and forward data in case of loss of networking. This means not only is data encrypted and compressed in transit, there will also be zero data loss.

Protocol Converter

The Protocol Converter architecture is designed to allow you to move data between devices that use different protocols and to move data from a device directly into the Cloud. You can use any of the OAS supported protocols to read and write your data, such as Allen Bradley, Modbus, MTConnect, OPC UA/DA and Siemens. For Cloud connectivity, OAS supports AWS IoT, Azure IoT, Kafka and generic MQTT messaging.

This architecture uses the Data Route feature to move data from one set of tags to another or to publish data from a set of tags into the Cloud. The Data Route feature handles the data routing without writing any code. For more information see this article on IIot Data Transfer.

IT/OT

The IT/OT architecture is a typical 2-tier networking arrangement for segregation of OT and IT networks where the OAS instance in the OT network is deployed as a concentrator or edge deployment and an additional OAS instance is deployed in a DMZ to make data available to the IT network.

Depending on the security requirements, you can use a number of different configurations to achieve this architecture. If your DMZ OAS instance is simply acting as a data router, clients connecting to the DMZ OAS instance can use standard Basic Networking remote tag notation to reference the OT instance tag names. This way you only need to license the tags on your OT instance, but note that this does not support store-and-forward in case of networking loss.

If you want a copy of your data in the DMZ OAS instance, you will need to replicate the tags stored in the OT OAS instance. You can choose the method that suits you best:

  • If you want the tags to be read-only in the DMZ then you can use the “Tag” Data Source (Basic Networking). Note that this does not support store-and-forward.
  • If you want data to be read-write you can use a Proxy configuration (Live Data Cloud). Note that this does not support store-and-forward.
  • If you want fine-tuned control over which data is copied and when it is copied you can use the Data Route feature on the OT instance to push the data to the DMZ.
  • If you require a highly isolated OT network with no overlap, you can use the Unidirectional configuration (Unidirectional Network Gateway) to push data directly from the OT network into a DMZ or the IT network in a one-way data configuration.

3-Tier

The 3-Tier architecture is similar to the IT/OT architecture outlined above, except that it also introduces an IT DMZ with a third, public facing OAS instance. All of the details explained in the IT/OT architecture apply to this, but the 3-Tier architecture would be used if you require integration with external clients or third-party Cloud platforms (AWS IoT, Azure IoT and MQTT).

You can move data into your IT DMZ OAS instance using the same principles explained in the IT/OT architecture. Using the Proxy configuration (Live Data Cloud), you can create an alias that represents your OT DMZ instance and thus make the tag data available to external clients using the tag path notation shown in the Proxy architecture below.

Cloud IoT integrations can be achieved using the “Publish Tags” functionality to push messages to the Cloud. You do not have to replicate the tags license in the IT DMZ as it can remotely access the tag data via the OT DMZ OAS instance.

Proxy

The Proxy architecture provides a hosted OAS instance, typically in a DMZ, that acts as a proxy between other networks, external networks or public clients and internal OAS instances. This architecture typically uses Live Data Cloud and can supplement other internal architectures such as Concentrator, Edge and IT/OT.

Using Basic Networking, the OAS instance acts as a data router allowing clients to request data from remote OAS instances without having to directly talk to a remote instance. This is very similar to the IT/OT architecture, but in this architecture only the instance in the DMZ is required to have a static IP. The internal instances can have dynamic IPs and will automatically register themselves with the OAS instance in the DMZ using an alias. Clients can use the alias of the instance they want to request data from as a prefix in the tag path as shown in the Live Data Cloud remote tag access documentation.

Unidirectional

The Unidirectional architecture is designed to protect your vital, safety critical networks by only allowing data to flow in one direction. It works by using a broadcast style protocol called UDP to send data out of the vital network and into one or more non-vital networks based on a simple IP/host and port number configuration. Since UDP does not require acknowledgement, no traffic is required to flow back into the vital network.

This feature, called Unidirectional Network Gateway or UDP Broadcast, is specifically designed for highly critical systems such as nuclear power plants, military networks and other types of safety systems. The main aim of this architecture is to mitigate against network based attacks and remote configuration changes.

Embedded

The Embedded architecture is used when OAS is hosted on a device that supports a Windows IoT or Linux operating system (such as Raspberry Pi) and provides on-board or locally connect I/O capabilities. This allows you to create an all-in-one IoT device powered by OAS and is typically used by OEMs.

This instantly gives you all of the features that OAS can provide including data logging and buffering, alarm management and notifications, REST API and an HMI using UIEngine. With private labelling and the OAS configuration API you can hide OAS and make the device your own product.
